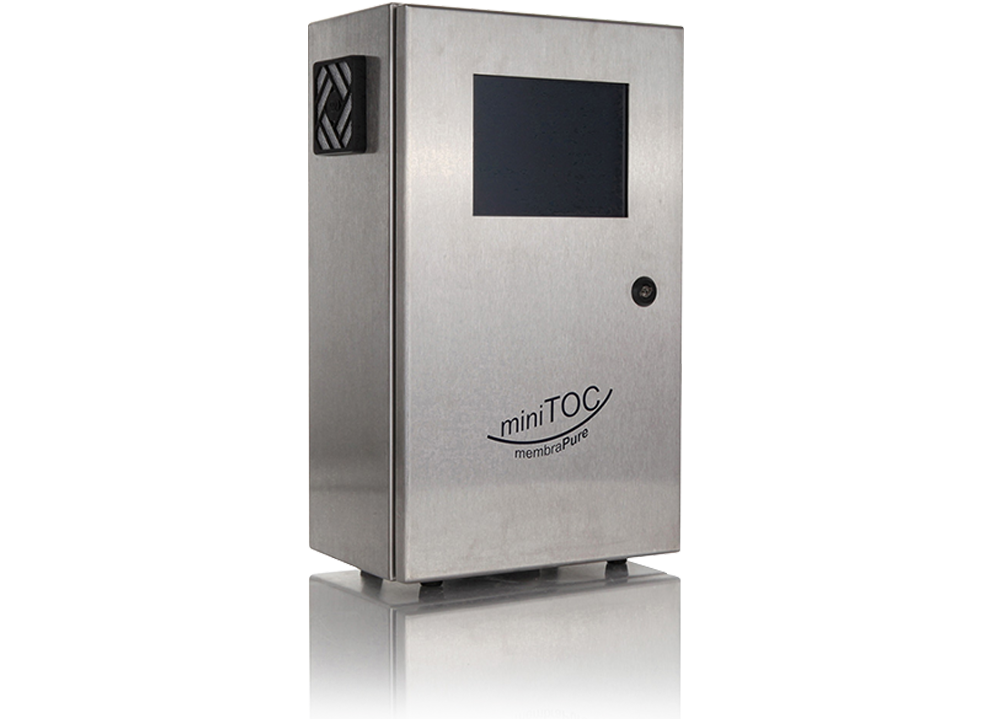

MiniTOC Analyser

The mini TOC instrument uses the classical flow-through concept for online or offline TOC monitoring of pure and ultra-pure water.

The efficient UV oxidation of organic compounds by the “direct surface” principle in combination with conductivity detection guarantees the fast monitoring of values.

Technical Specifications -

  •  UV-Oxidation (partial) & conductivity

    • - METHOD & DETECTION

  •  ca. 14 mL/min -

    • SAMPLE VOLUME FLOW

  •  0,5 to 1000 ppb-

    • -TOTAL ORGANIC CARBON (TOC)-RANGE

  •  USP <643>, EP 2.2.44, DIN EN 1484-

    • -RELATED NORMS

  •  CE Certified-

    • -CERTIFIED

MiniTOC Advantages -

  •  LOW SAMPLE VOLUME / LOWER COST AND WASTE
  •  9 MONTHS UV LAMP LIFE GUARANTEE / 50 % LONGER LIFE TIME RANGE THAN USUAL
  •  CONTINUOUS MEASUREMENT (EVERY 2 SECONDS) / FAST REACTION
  •   OFFLINE MEASUREMENT / GRAB SAMPLES CAN BE MEASURED
  •  UP TO 3 SAMPLE INLETS / VERY EFFICIENT
  •  REMOTE SERVICE / INSTRUMENT CAN BE CONNECTED TO INTERNET TO GET SERVICE DIAGNOSIS)

Options

BENCH INTEGRATED CONFIGURATION (BI VERSION)

To save valuable benchtop space the system can be ordered as BI configuration. The system will be installed underneath the work bench and only the display and dispenser are mounted on the wall

WALL MOUNTED CONFIGURATION

To save valuable benchtop space the system can be ordered as wall mounted configuration. the whole system can be mounted on the wall with inclined display

UPGRADE WITH DISPENSER

Upgrade of system with fixed and flexible dispenser for the series of AquaRO² 10 + 20 and EDI² 10 + 20.

VOLUMETRIC DISPENSING

Upgrade of system with fixed and flexible dispenser for the series of AquaRO² 10 + 20 and EDI² 10 + 20.

ADDITIONAL TANK

The series of AquaRO² and EDI² can be equipped with a tank of 35 L or 70 L or individual size and if requested also with an integrated UV lamp. An exception is the AquaoRO² 8 P10 with an integrated tank of 10 liters.

SOFTENER UNIT

Compact system in cabinet including control box for the pretreatment.

Specifications -

Technical Specifications -
1 Method & detection UV oxidation (partial) & conductivity
2 Sample volume flow Approx. 14 mL/min
3 Time of measurement 2 sec (online mode) | 1 min (offline mode)
4 Measurement range 0.5 to 1000 ppb
5 Detection accuracy ~0.5 ppb or 1 % (whatever is greater)
6 Ports 1 for sample, 1 for SST (basic) | 1 for sample, 3 for SST (pro)
7 Related norms USP <643>, EP 2.2.44, DIN EN 1484
8 Ambient parameters Relative humidity: 10 to 95 %, temperature: 10 to 45 °C
9 Interface ports Analog, according to Namur NE43
10 Dimensions, weight, power 300 x 200 x 500 mm, 14 kg, 110 - 230 V, 50 Hz, 60 Watt
Medium Requirements-
1 Type of sample medium Pure or ultra pure water
2 Medium conductivity < 2 µS/cm (upgradable to < 30 µS/cm)
3 Inlet pressure < 1 bar
4 Sample temperature < 50 °C
